Hidden SSID Discovery Lab Report

1.0 Introduction

This lab demonstrates how a hidden wireless SSID can be identified using wireless packet capture and analysis. A hidden SSID is configured by disabling SSID broadcast on the wireless router. Although this prevents the network name from appearing in normal Wi-Fi scans, the SSID can still be exposed when a legitimate client connects or reconnects to the access point.

The lab was conducted in a controlled environment using a Linksys router, an Alfa wireless adapter, Kali Linux, and Wireshark.

---

2.0 Objective

The objectives of this lab are:

1. To configure a Linksys router with a hidden SSID.

2. To place an Alfa wireless adapter into monitor mode using Kali Linux.

3. To capture wireless management frames using airodump-ng.

4. To analyze the captured packets in Wireshark.

5. To identify the hidden SSID from client connection traffic.

---

3.0 Lab Equipment

Equipment	Description
Kali Linux	Operating system used for wireless monitoring and packet capture
Alfa Wireless Adapter	Wireless adapter used for monitor mode
Linksys Router	Access point configured with hidden SSID
Client Device	Phone or laptop used to connect to the hidden Wi-Fi
Wireshark	Packet analysis tool
Aircrack-ng Suite	Wireless security testing toolkit

---

4.0 Router Configuration

The Linksys router was configured with the following wireless settings:

Setting	Configuration
Wireless Band	2.4 GHz
SSID / Wi-Fi Name	HiddenLab
SSID Broadcast	Disabled
Channel	9
Channel Width	20 MHz
Security Mode	WPA2-Personal
Encryption	AES
Password	Password12345
5 GHz Band	Disabled for testing

The 2.4 GHz band was selected because channel 9 belongs to the 2.4 GHz frequency range. The 5 GHz band was disabled to ensure that the client device connected only to the target 2.4 GHz wireless network.

---

5.0 Kali Linux Setup

The Alfa wireless adapter was connected to the Kali Linux machine. The wireless interface was verified using the following command:

iwconfig

The adapter was then placed into monitor mode. Before enabling monitor mode, conflicting network services were stopped using:

sudo airmon-ng check kill

Monitor mode was then enabled using:

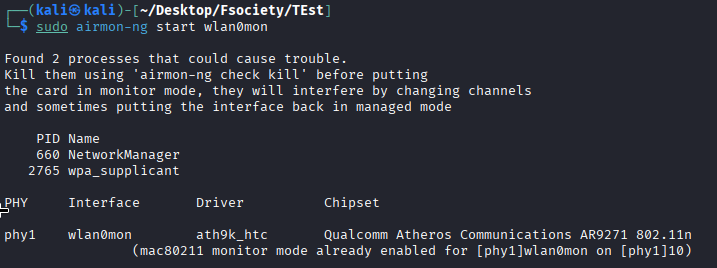

sudo airmon-ng start wlan0

After enabling monitor mode, the interface changed to:

wlan0mon

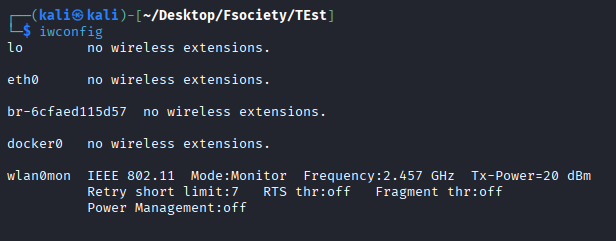

The interface status was confirmed using:

iwconfig

The output confirmed that the adapter was operating in monitor mode:

wlan0mon  IEEE 802.11  Mode:Monitor

---

6.0 Wireless Network Scanning

Nearby wireless networks were scanned using:

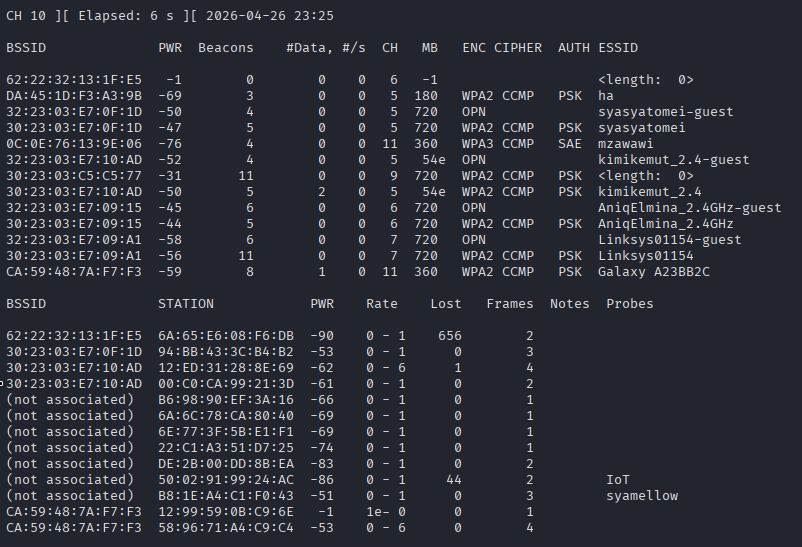

sudo airodump-ng wlan0mon

The Linksys router appeared with its ESSID hidden. Since SSID broadcast was disabled, the network name was not displayed. Instead, it appeared as:

<length: 0>

or:

<hidden>

The following information was recorded from the scan:

Field	Description
BSSID	MAC address of the Linksys router
Channel	Wireless channel used by the router
Encryption	Wireless security type
ESSID	Hidden or blank

Example:

BSSID              CH   ENC   ESSID
AA:BB:CC:DD:EE:FF  9    WPA2  <length: 0>

---

7.0 Packet Capture

After identifying the router BSSID and channel, packet capture was started on channel 9 using:

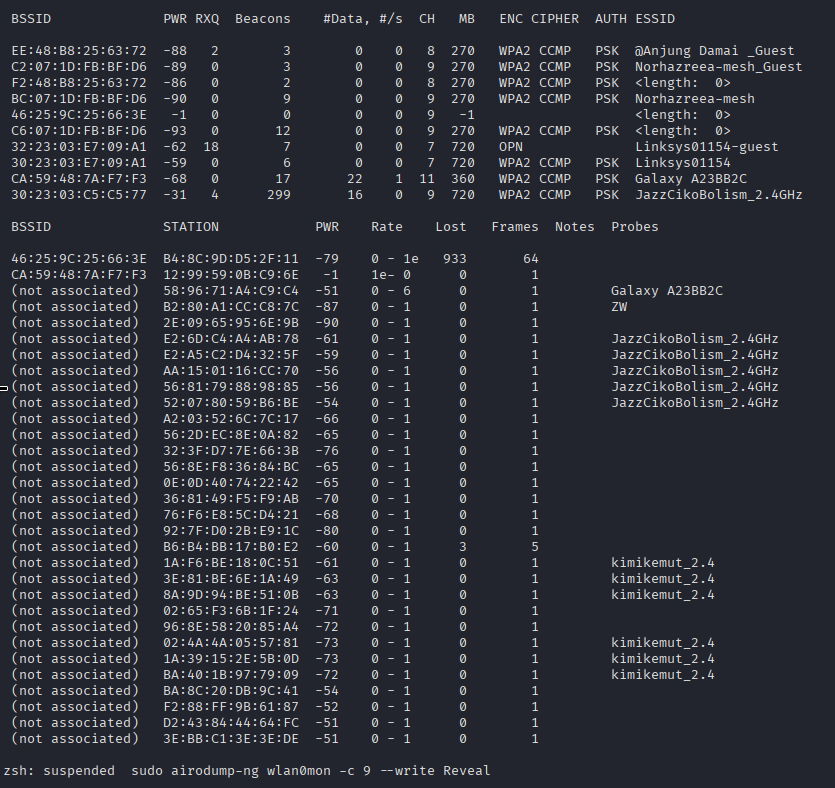

sudo airodump-ng wlan0mon -c 9  --write Reveal

sudo airodump-ng wlan0mon -c 9 --bssid AA:BB:CC:DD:EE:FF --write Reveal

The command options are explained below:

Option	Function
wlan0mon	Monitor mode wireless interface
-c 9	Captures only on channel 9
--bssid	Targets the selected router only
--write Reveal	Saves the captured packets with the filename prefix Reveal

While the capture was running, a client device was manually connected to the hidden Wi-Fi network.

---

8.0 Client Connection Process

A client device was used to connect to the hidden wireless network. The network was manually added using the following details:

Setting	Value
SSID	HiddenLab
Security	WPA2-Personal
Password	Password12345

The client device was then connected to the hidden network while Kali Linux was capturing packets. During this process, wireless management frames were generated and captured.

The relevant frame types include:

Probe Request
Probe Response
Association Request

These frames may contain the actual SSID of the hidden wireless network.

---

9.0 Packet Analysis in Wireshark

The captured file was opened in Wireshark using:

wireshark Reveal-01.cap

A display filter was applied to show packets related to the Linksys router:

wlan.bssid == AA:BB:CC:DD:EE:FF

If additional packets were required, a wider filter was used:

wlan.ta == AA:BB:CC:DD:EE:FF || wlan.ra == AA:BB:CC:DD:EE:FF || wlan.bssid == AA:BB:CC:DD:EE:FF

The following Wireshark filters were useful for identifying management frames:

Frame Type	Wireshark Filter
Probe Request	wlan.fc.type_subtype == 4
Probe Response	wlan.fc.type_subtype == 5
Association Request	wlan.fc.type_subtype == 0

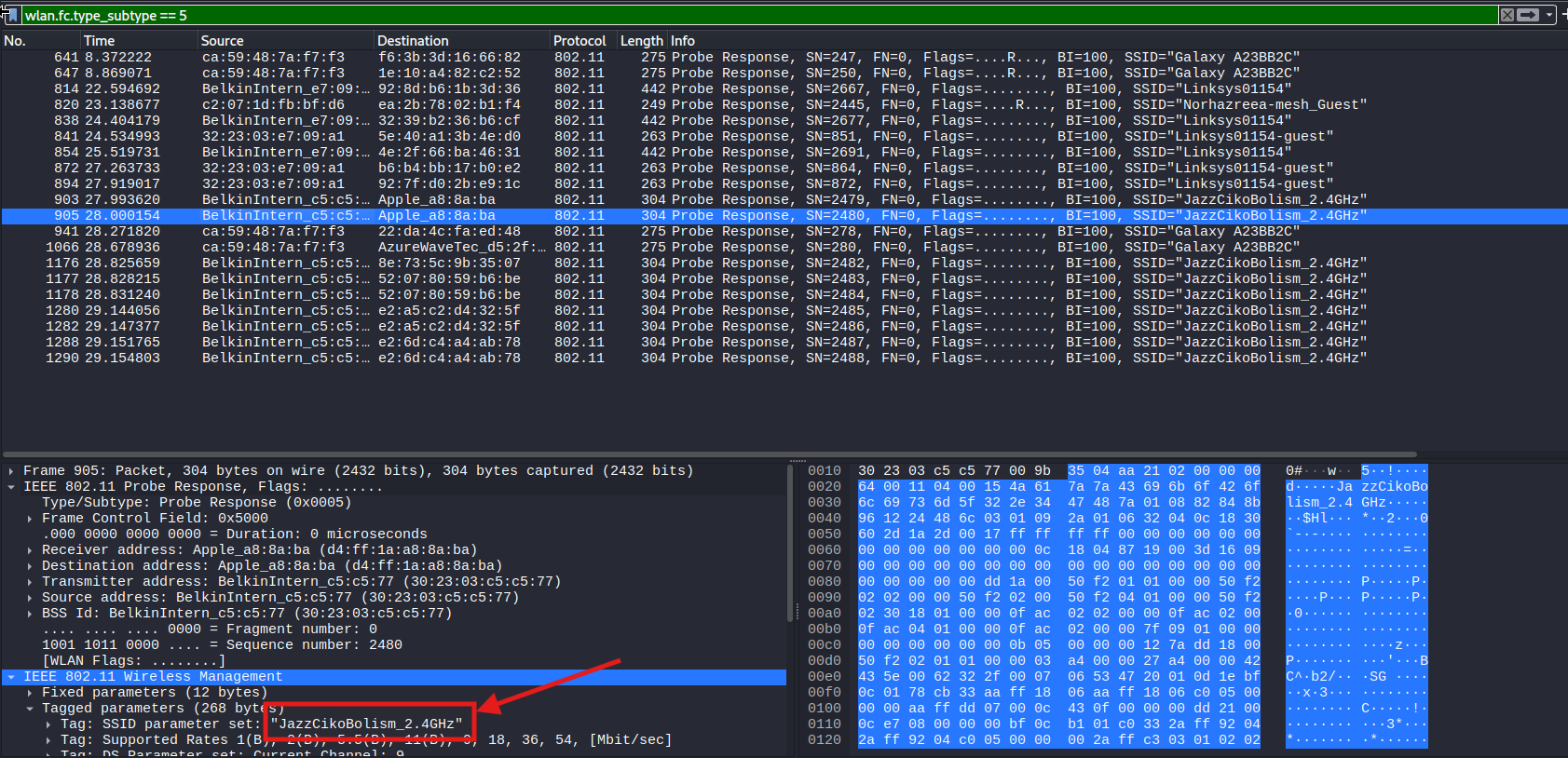

The packet details were expanded using the following path:

IEEE 802.11 wireless LAN management frame
Tagged parameters
SSID parameter set

The hidden SSID was then visible inside the SSID parameter field.

---

10.0 Result

The hidden SSID was successfully identified from the captured wireless management frames.

Example result:

Hidden SSID discovered: HiddenLab

This confirms that disabling SSID broadcast does not completely hide a wireless network. The SSID can still be exposed when a legitimate client connects or reconnects to the access point.

---

11.0 Discussion

A hidden SSID only prevents the network name from appearing in normal beacon frames. It does not provide strong wireless security. When a client connects to a hidden network, the SSID may still be transmitted in management frames such as probe requests or association requests.

Therefore, hidden SSID configuration should not be treated as a security control. It only provides minimal obscurity and can be bypassed through passive wireless monitoring.

Proper wireless security should rely on stronger controls such as WPA2/WPA3 encryption, strong passwords, disabled WPS, and updated router firmware.

---

12.0 Troubleshooting

Issue	Possible Cause	Solution
SSID does not appear	No client connected during capture	Reconnect a client while airodump-ng is running
Router not visible	Wrong channel selected	Confirm router channel and use -c 9
No packets captured	Wrong interface used	Use wlan0mon, not wlan0
Client connects but SSID not found	Client connected to 5 GHz	Disable 5 GHz and use 2.4 GHz only
Monitor mode not working	Network services interfering	Run sudo airmon-ng check kill
Wi-Fi unavailable after lab	NetworkManager was stopped	Restart NetworkManager

To restore normal Wi-Fi functionality after the lab:

sudo airmon-ng stop wlan0mon
sudo systemctl restart NetworkManager

---

13.0 Conclusion

The lab successfully demonstrated that a hidden SSID can be discovered using wireless packet capture and analysis. Although the Linksys router was configured not to broadcast its SSID, the SSID was revealed when a client device connected to the network.

This shows that hiding an SSID is not an effective security measure. Strong encryption, secure passwords, disabled WPS, and proper wireless security configuration are required to protect a wireless network effectively.
